Ablon | Nanosecond DPSS Laser
A compact nanosecond laser delivering stable, high-energy pulses for advanced scientific and industrial applications.
Reliable. Versatile. Maintenance-free.

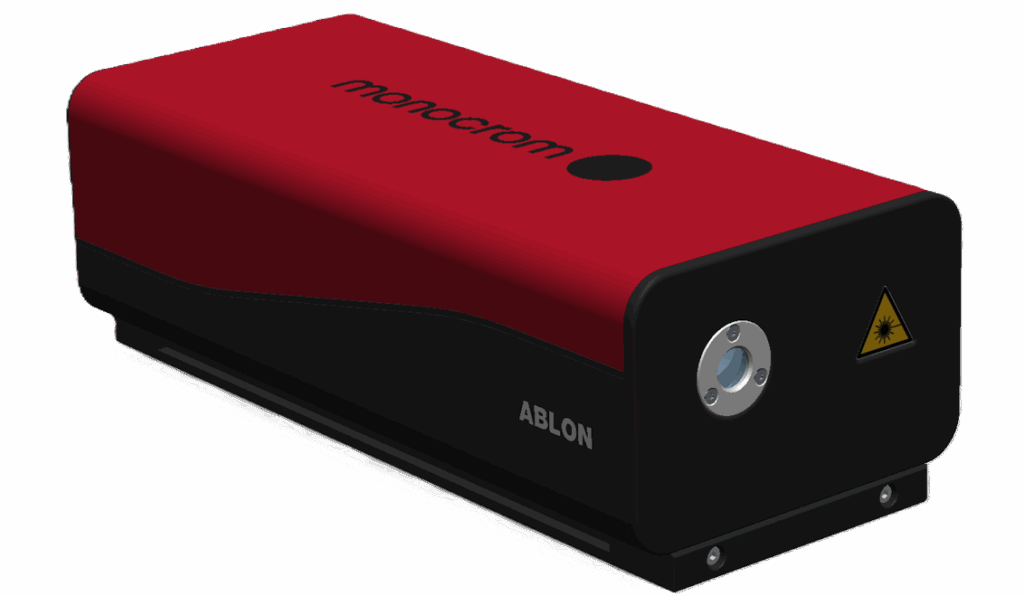

Ablon - Precision in every pulse
Ablon is a state-of-the-art compact nanosecond laser designed to deliver exceptionally stable, high-energy pulses for a wide range of advanced scientific and industrial applications. Engineered for precision and reliability, Ablon provides consistent performance even in the most demanding environments.
Its versatile design allows seamless integration into complex systems, while its maintenance-free operation ensures minimal downtime and reduced operational costs. Whether used for material processing, research experiments, or industrial automation, Ablon combines advanced technology, durability, and ease of use in a single compact solution.
Core Features
Pulse energy
up to 220 mJ
Repetition rate
up to 150 Hz
Excellent beam
focusability
Long lifetime due
to DPSS technology
Extremely robust
and stable design
Dust-sealed
optical chamber
Applications
| TH 50 | TH 100 | TH 150 | SG 50 | SG 100 | SG 150 | |
|---|---|---|---|---|---|---|
| Pulse repetition rate [Hz] | 50 | 100 | 150 | 50 | 100 | 150 |
| Pulse energy [mJ] | ||||||
| at 1064 nm | 220 | 200 | 150 | 180 | 160 | 120 |
| at 532 nm | 110 | 100 | 75 | 90 | 80 | 60 |
| at 355 nm | 60 | 55 | 40 | 50 | 45 | 30 |
| Pulse duration [ns] | 7 ± 3 | |||||
| Optical jitter [ns] | < 0.5 | |||||
| Pulse energy stability, RMS [%] | ||||||
| at 1064 nm | < 1 | |||||
| at 532 nm | < 1.5 | |||||
| at 355 nm | < 2.5 | |||||
| Long term power drift [%] (5) | ± 3 | |||||
| Beam profile | “Top Hat” in the near field, close to Gaussian in the far field | Super-Gaussian in the near field, close to Gaussian in the far field | ||||
| Beam diameter [mm] | 5.0 ± 0.5 | 4.5 ± 0.5 | ||||
| Beam divergence [mrad] (6) | < 1 | |||||
| Beam pointing [µrad] | < 70 | |||||
| Polarization | linear, PER > 85 % | linear, PER > 98 % | ||||
| Cooling type | Water (chiller included) | |||||

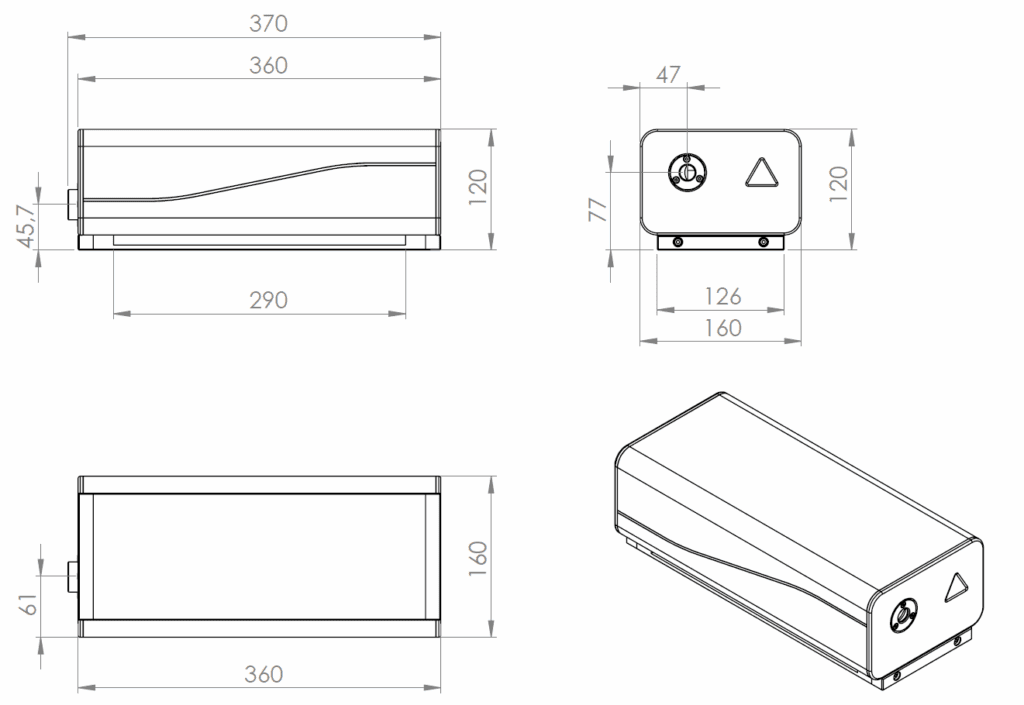

| Laser head dimensions [mm] (L × W × H) | 360 × 160 × 120 | |||||
| Control unit dimensions | 19” rack, 6U | |||||
| Operating voltage | 100 – 240 V AC, single phase, 50/60 Hz | |||||
| Power consumption [kW] | < 1.0 | |||||
| Operational temperature [°C] | 18 – 35 (non-condensing) | |||||
| Expected lifetime (7) [shots] | 1 billion | |||||
| Laser product class (EN-60825) | Class 4 | |||||
