pumping
Showing all 5 results
-
Products, Pumping Sources

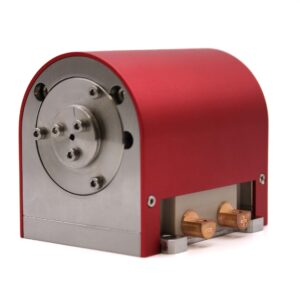

CW Pumping Source PH120 – PH300
CW Pumping Source PH120 – PH300
Pump heads for laser pumping, pumped with 120 W – 300 W at continuos wave (CW).
We offer all of them with Nd:YAG or Nd:YLF rod material.
The cylindrical symmetry of these pumping units allows rotation of the pumping chamber giving flexibility during the production and optimization of a laser system. The pumping laser diode bars are mounted using our patented solder-free clamping technology. Exclusively used by Monocrom.
SKU: CW Pumping Source PH120 – PH300 -
-
Products, Diode-Pumped Solid-State Lasers, Pumping Sources
Multi-Path® 532: Photocoagulation Laser
Multi-Path 532: Photocoagulation Laser
- diode-pumped solid state green laser
- wavelength: 532 nm
- peak power at CW: up to 4W
- peak power at QCW: up to 8W
- beam quality: M²<1.4
- Power on demand
- Multi-path technology
SKU: MP 532 -
Products, Pumping Sources
QCW Pumping Source PH3600-PH5400
QCW Pumping Source PH3600-PH5400
QCW Pumping Source pumping source operates in quasi continous wave (QCW) mode.
It delivers excellent gain uniformity and lensing performance.
It includes its own capacitor bank and driver so the high current pulses are generated in the module itself, reducing the losses and complexity of the electrical setup and easing the control and synchronization of different gain modules by means of software.
The pumping laser diode bars are mounted using our patented solder-free Clamping™ technology. Exclusively used by Monocrom.
SKU: QCW Pumping Source PH3600-PH5400 -
Products, Pumping Sources
QCW Pumping Source PH450-PH1800
Reliable laser pumping units that operate in quasi continous wave (QCW).
A cylindrical symmetry design allows rotation of the pumping chamber giving flexibility during the production and optimization of a laser system.
The pumping laser diode bars are mounted using our patented solder-free Clamping™ technology.
No mechanical stress Our patented solder-free technology is used in our diode bars stacks. Thanks to it clamped bars expand and contract freely during the thermal cicles of the pulsed regime avoiding mechanical stress.
SKU: QCW Pumping Source PH450-PH1800
