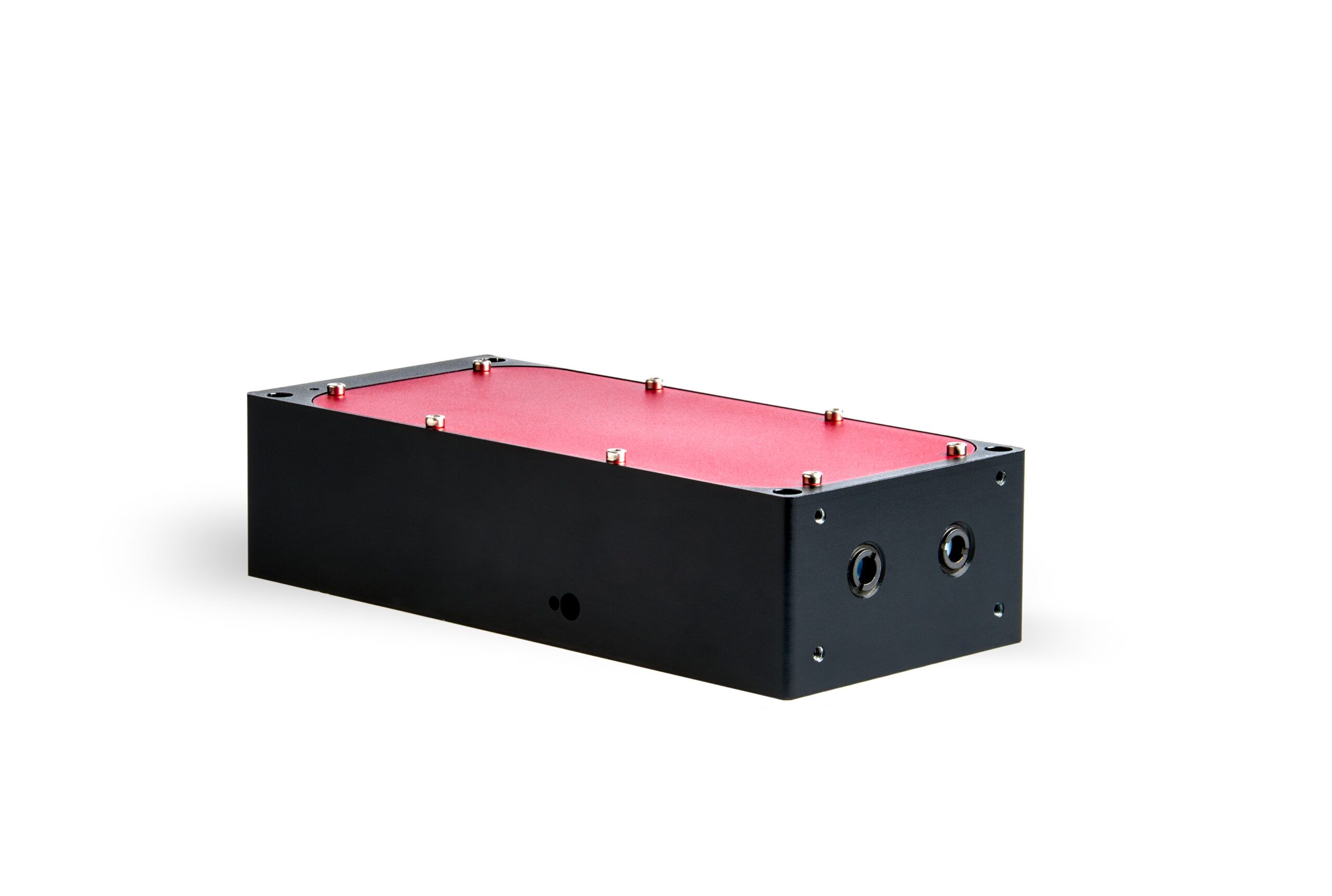

| Laser head | |||
| Minimum | Operation | Max. rating | |
|---|---|---|---|
| Wavelength(1) [nm] | 527 | ||
| Pulse energy [μJ] | 800 | 1000 | |
| Pulse-to-pulse energy stability [%] | 95 | ||
| Pulse width (FWHM) [µs] | 1,53 | 1,67 | 1,87 |
| Effective pulse duration [µs] | 1,55 | 1,84 | 2,06 |
| Repetition rate [Hz] | 99 | 100 | 200 |
| Amplitude variation, typical (Pend/Ppeak) [%] | 50 | ||
| Ripple within one pulse(1) [%] | 10 | ||
| Fluctation of the ratio [%] | 10 | ||
| Output beam centering(2) [mm] | 0,4 | 0,5 | |
| Beam quality [M²] | 1,5 | 1,6 | |
| Far field beam divergence [mrad] | 4 | 5 | 6 |
| Mechanics | |||
| Operation temperature [ºC] | 22 | 25 | 28 |
| Stabilization time [s] (TBC) | 10 | 30 | |
| Laser beam point stability [µrad] | 50 | ||

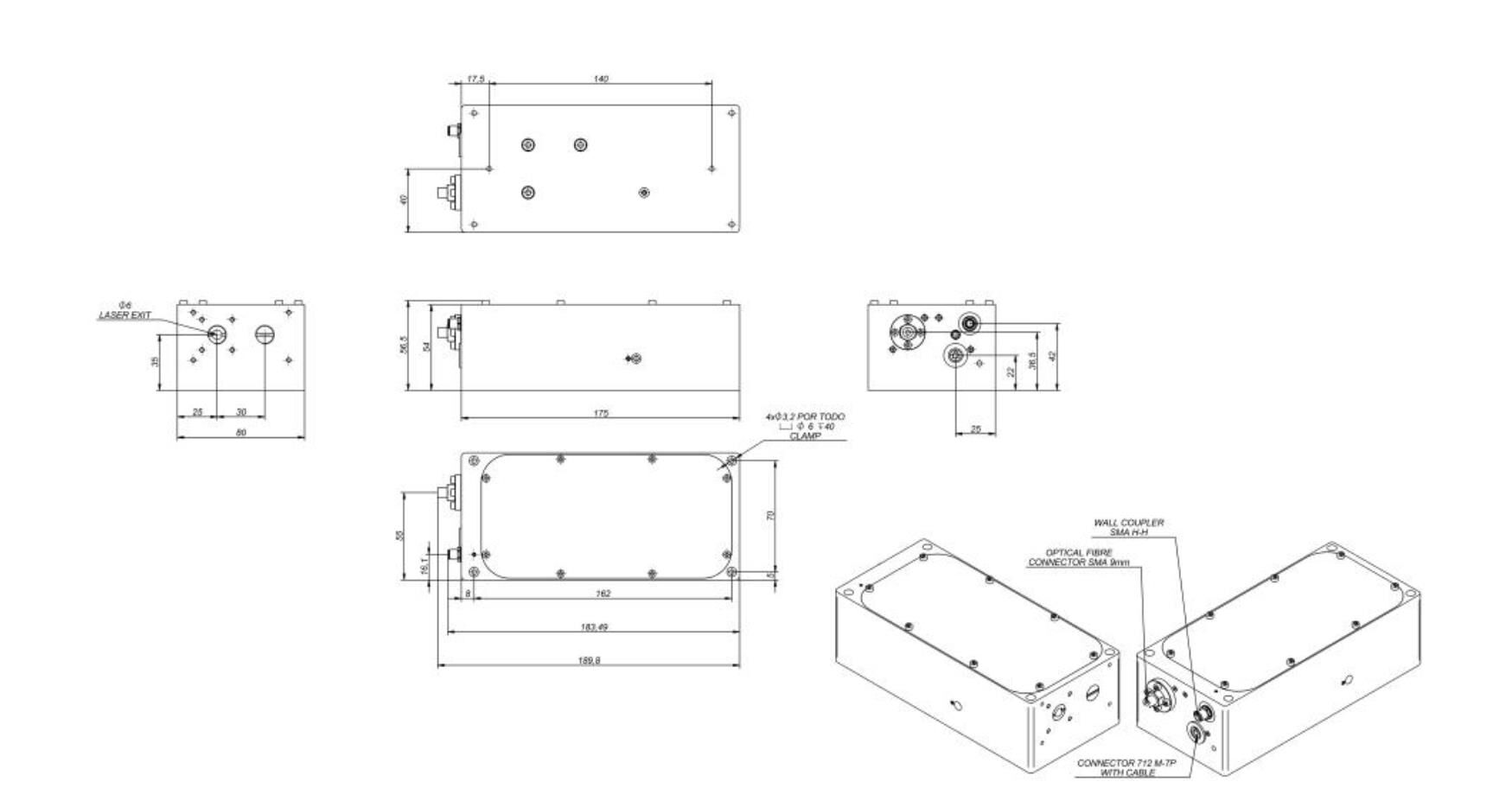

| Dimension [mm] | 191 x 80 x 56,5 | ||
| Laser Safety Classification | Class 4 | ||
| Pumping LD not included. Suggested LD features | |||
| Wavelength [nm] | 804 | ||
| Current [A] | 50 | ||
| Voltage [V] | 2 | ||
| Pulse width [ms] | 800 | ||
| Fiber core [µm] | 200 | ||
| Fiber NA | 0,22 | ||
- From maximum amplitude
- From the center of laser exit window
