Single Bar Diode Lasers

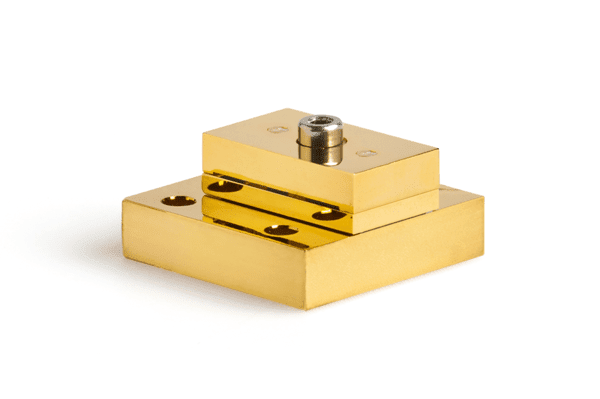

Laser diode packages for a single laser bar with conduction or water macro-channels cooling with great heat dissipation and an unprecedent low smile.

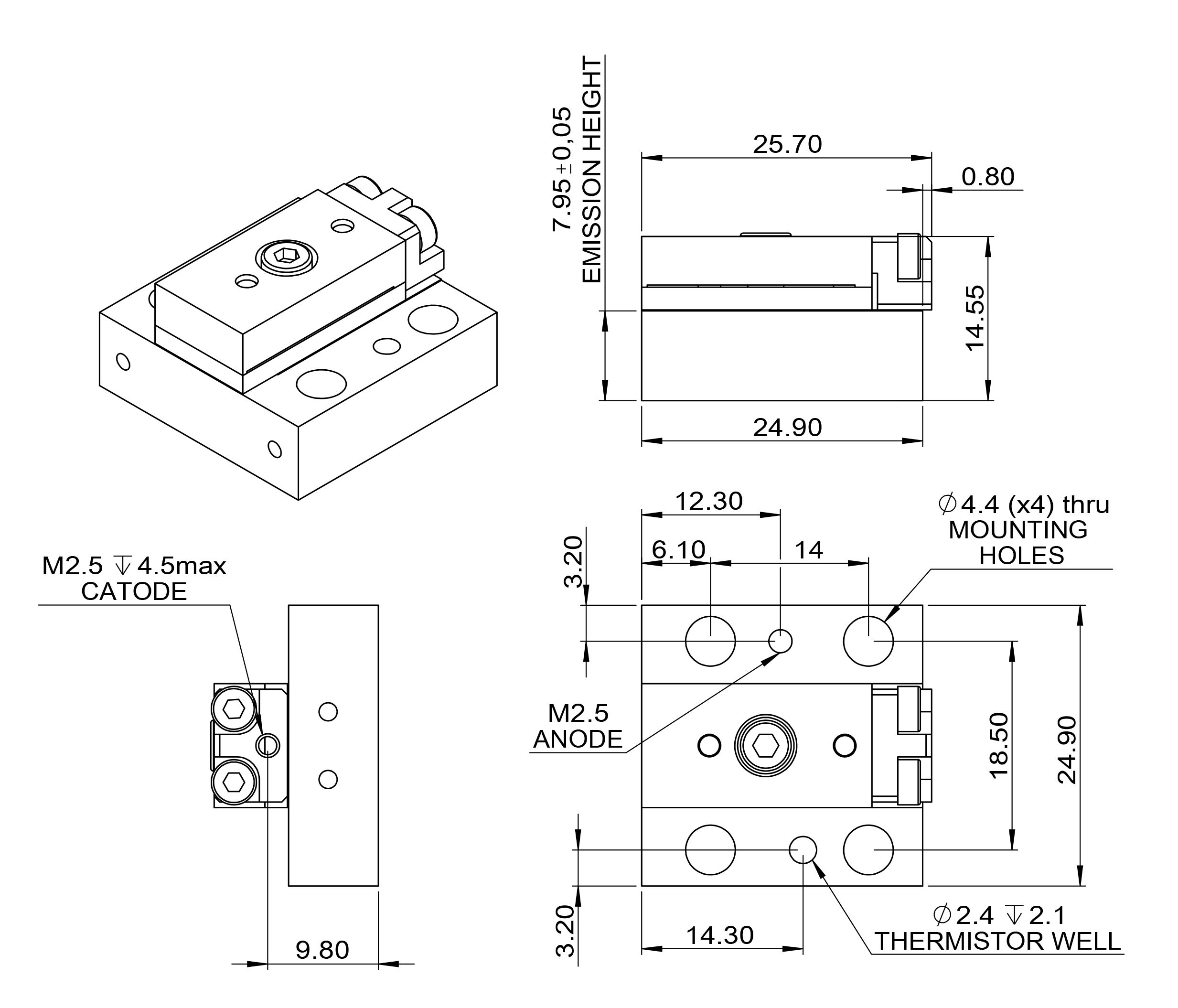

Our single bar diode laser mounts are clamped with Monocrom Solder-free laser bar Clamping™ Technique that improves overall performance and prolongs laser diode life-time.

There is an option to add a variety of optics assemblies to collimate both optical axes.

Operation Mode :

wdt_ID	Wavelength (nm)	Output Power (W)	Operation Mode	Cooling	Collimation	Wavelength stabilization	Comments	Datasheet
1	808	up to 100 / laser bar	CW	active	FAC / SAC / BT	available up on request	2-sides water cooling	AS-Mount
2	808	up to 500 / laser bar	QCW	active	FAC	available up on request	2-sides water cooling	AS-Mount
3	808	up to 100 / laser bar	CW	passive	FAC / SAC / BT	available up on request	Smile < 0.1 µm	CS-Mount
4	808	up to 500 / laser bar	QCW	passive	FAC	available up on request	Smile < 0.1 µm	CS-Mount
5	880	up to 100 / laser bar	CW	active	FAC / SAC / BT	available up on request	2-sides water cooling	AS-Mount
6	880	up to 500 / laser bar	QCW	active	FAC	available up on request	2-sides water cooling	AS-Mount
7	880	up to 100 / laser bar	CW	passive	FAC / SAC / BT	available up on request	Smile < 0.1 µm	CS-Mount
8	880	up to 500 / laser bar	QCW	passive	FAC	available up on request	Smile < 0.1 µm	CS-Mount
9	915	up to 200 / laser bar	CW	active	FAC / SAC / BT	available up on request	2-sides water cooling	AS-Mount
10	915	up to 200 / laser bar	QCW	active	FAC / BT	available up on request	2-sides water cooling	AS-Mount
11	915	up to 200 / laser bar	CW	passive	FAC / SAC / BT	available up on request	Smile < 0.1 µm	CS-Mount
12	915	up to 200 / laser bar	QCW	passive	FAC / BT	available up on request	Smile < 0.1 µm	CS-Mount
13	940	up to 120 / laser bar	CW	active	FAC / SAC / BT	available up on request	2-sides water cooling	AS-Mount
14	940	up to 300 / laser bar	QCW	active	FAC	available up on request	2-sides water cooling	AS-Mount
15	940	up to 120 / laser bar	CW	passive	FAC / SAC / BT	available up on request	Smile < 0.1 µm	CS-Mount
16	940	up to 300 / laser bar	QCW	passive	FAC	available up on request	Smile < 0.1 µm	CS-Mount
17	976	up to 150 / laser bar	CW	active	FAC / SAC / BT	available up on request	2-sides water cooling	AS-Mount
18	976	up to 400 / laser bar	QCW	active	FAC	available up on request	2-sides water cooling	AS-Mount
19	976	up to 150 / laser bar	CW	passive	FAC / SAC / BT	available up on request	Smile < 0.1 µm	CS-Mount
20	976	up to 400 / laser bar	QCW	passive	FAC	available up on request	Smile < 0.1 µm	CS-Mount
21	1,060	up to 100 / laser bar	CW	active	FAC / SAC / BT		2-sides water cooling	AS-Mount
22	1,060	up to 250 / laser bar	QCW	active	FAC / BT		2-sides water cooling	AS-Mount
23	1,060	up to 100 / laser bar	CW	passive	FAC / SAC / BT		Smile < 0.1 µm	CS-Mount
24	1,060	up to 250 / laser bar	QCW	passive	FAC / BT		Smile < 0.1 µm	CS-Mount
25	1,470	up to 25 / laser bar	CW	active	FAC / SAC / BT	available up on request	2-sides water cooling	AS-Mount
26	1,470	up to 25 / laser bar	QCW	active	FAC / SAC / BT	available up on request	2-sides water cooling	AS-Mount
27	1,470	up to 25 / laser bar	CW	passive	FAC / SAC / BT	available up on request	Smile < 0.1 µm	CS-Mount
28	1,470	up to 25 / laser bar	QCW	passive	FAC / SAC / BT	available up on request	Smile < 0.1 µm	CS-Mount
29	1,550	up to 25 / laser bar	CW	active	FAC / SAC / BT		2-sides water cooling	AS-Mount
30	1,550	up to 25 / laser bar	QCW	active	FAC / SAC / BT		2-sides water cooling	AS-Mount
31	1,550	up to 25 / laser bar	CW	passive	FAC / SAC / BT		Smile < 0.1 µm	CS-Mount
32	1,550	up to 25 / laser bar	QCW	passive	FAC / SAC / BT		Smile < 0.1 µm	CS-Mount
33	1,940	up to 15 / laser bar	CW	active	FAC / SAC / BT	available up on request	2-sides water cooling	AS-Mount
34	1,940	up to 15 / laser bar	QCW	active	FAC / SAC / BT	available up on request	2-sides water cooling	AS-Mount
35	1,940	up to 15 / laser bar	CW	passive	FAC / SAC / BT	available up on request	Smile < 0.1 µm	CS-Mount
36	1,940	up to 15 / laser bar	QCW	passive	FAC / SAC / BT	available up on request	Smile < 0.1 µm	CS-Mount
37	760	up to 40 / laser bar	CW	active	FAC / SAC / BT		2-sides water cooling	AS-Mount
38	760	up to 200 / laser bar	QCW	active	FAC		2-sides water cooling	AS-Mount
39	760	up to 40 / laser bar	CW	passive	FAC / SAC / BT		Smile < 0.1 µm	CS-Mount
40	760	up to 200 / laser bar	QCW	passive	FAC		Smile < 0.1 µm	CS-Mount
			Operation Mode

SKU: Single Bar Diode Lasers Categories: Products, Diode Lasers components, Single Bar Lasers Tags: 1060 nm, 1060nm, 1470 nm, 1470nm, 1550 nm, 1550nm, 1940 nm., 1940nm, 760 nm, 760nm, 808 nm, 808nm, 880 nm, 880nm, 915 nm, 915nm, 940 nm, 976 nm, 976nm, actively, cooled, passively, single bar

🔴 Possible levels of integration for this product are marked in red

🔴 Laser Bar Clamping™ Technology
