Vertical Diode Lasers

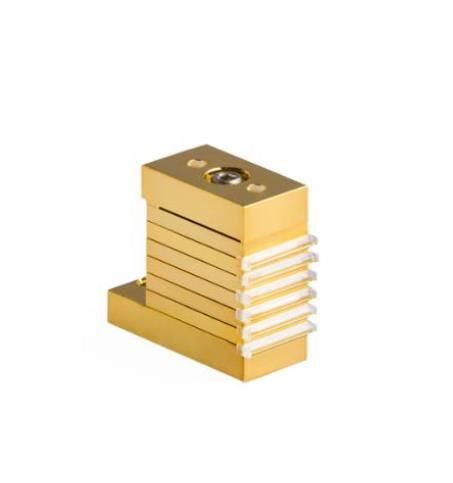

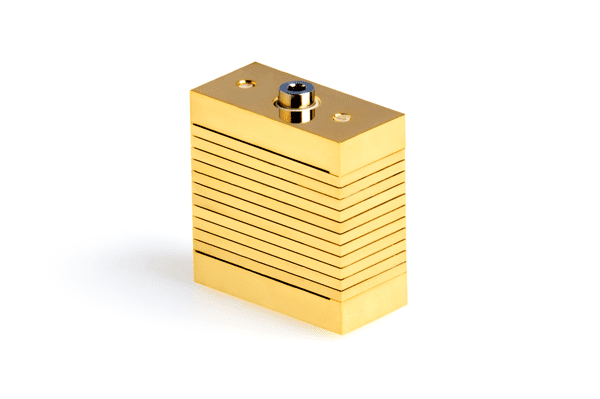

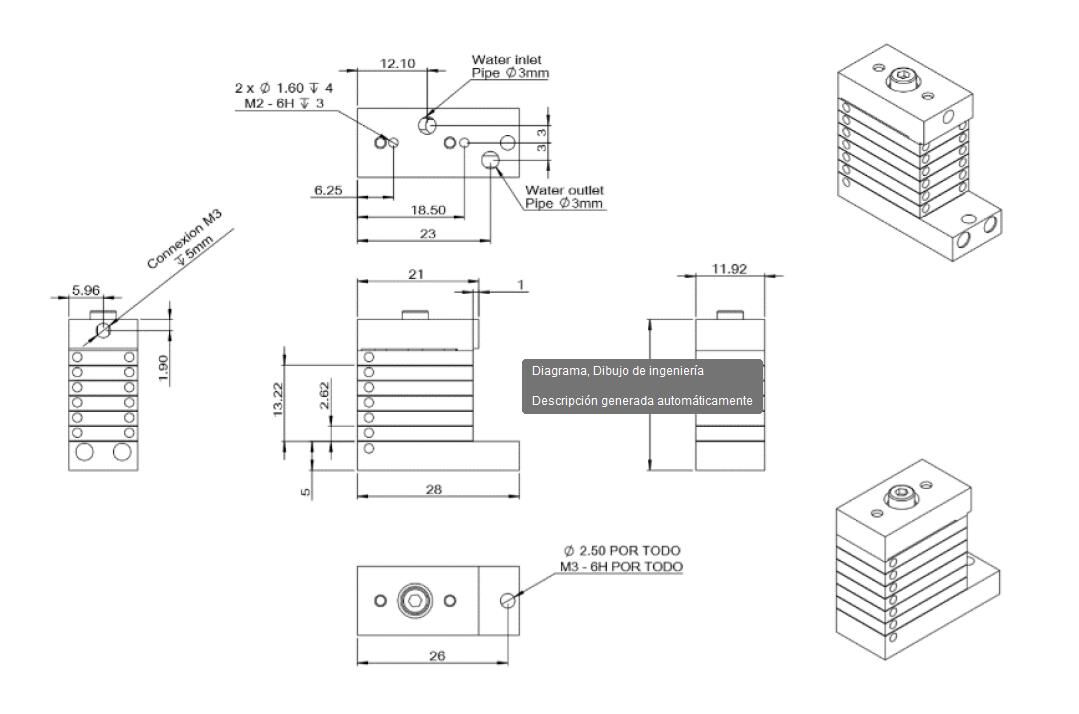

Vertical diode laser assemblies, efficiently cooled with conduction or millimeter water channels cooling circuit. Our vertically structured packages are mounted with a Patented Solder-free Clamping™ technique that allows high cooling efficiency and large operation and storage temperature range. The Innovative Monocrom Clamping™ technology , designed and developed by Monocrom, eliminates the undesired “smile effect” and prolongs laser lifetime.

Choose between different architectures, number of laser bars per stack and tune the central wavelength to your needs. Full range of wavelength offered:  760 nm, 808nm, 880 nm, 915 nm, 940 nm, 976 nm, 1060 nm, 1470 nm, 1550 nm, 1940 nm.

Specification

wdt_ID Wavelength (nm) Output Power (W) Operation Mode Cooling Collimation Wavelength stabilization Comments Datasheet
226 760 up to 200 / laser bar QCW active FAC available upon request low pitch= 1.8 mm CAST
227 760 up to 40 / laser bar CW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
228 808 up to 500 / laser bar QCW active FAC available upon request low pitch= 1.8 mm CAST
229 808 up to 100 / laser bar CW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
230 880 up to 500 / laser bar QCW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
231 880 up to 100 / laser bar CW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
232 915 up to 200 / laser bar QCW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
233 808 up to 100 / laser bar CW active FAC / SAC / BT available upon request real macro-channels A-Stack
236 808 up to 500 / laser bar QCW active FAC available upon request real macro-channels A-Stack
239 915 up to 200 / laser bar CW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
240 940 up to 300 / laser bar QCW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
241 940 up to 120 / laser bar CW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
242 970 up to 400 / laser bar QCW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
243 976 up to 150 / laser bar CW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
244 1,060 up to 350 / laser bar QCW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
245 1,060 up to 100 / laser bar CW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
246 1,470 up to 25 / per laser bar QCW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
247 880 up to 100 / laser bar CW active FAC / SAC / BT available upon request real macro-channels A-Stack
249 880 up to 500 / laser bar QCW active FAC / SAC / BT available upon request real macro-channels A-Stack
250 880 up to 500 / laser bar QCW passive FAC / SAC / BT available upon request smile < 0.1µm C-Stack
251 915 up to 200 / laser bar CW active FAC / SAC / BT available upon request real macro-channels A-Stack
254 915 up to 200 / laser bar QCW active FAC / SAC / BT available upon request real macro-channels A-Stack
255 915 up to 220 / laser bar QCW passive FAC / SAC / BT available upon request heat sink M-Stack
256 915 up to 200 / laser bar QCW passive FAC / SAC / BT available upon request smile < 0.1µm C-Stack
257 940 up to 120 / laser bar CW active FAC / SAC / BT available upon request real macro-channels A-Stack
260 940 up to 300 / laser bar QCW active FAC / SAC / BT available upon request real macro-channels A-Stack
261 940 up to 320 / laser bar QCW passive FAC / SAC / BT available upon request heat sink M-Stack
262 940 up to 300 / laser bar QCW passive FAC / SAC / BT available upon request smile < 0.1µm C-Stack
263 1,470 up to 25 / laser bar CW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
264 1,550 up to 25 / laser bar QCW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
265 1,550 up to 25 / laser bar CW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
266 1,940 up to 20 / laser bar QCW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
267 1,940 up to 20 / laser bar CW active FAC / SAC / BT available upon request low pitch= 1.8 mm CAST
268 976 up to 150 / laser bar CW active FAC / SAC / BT available upon request real macro-channels A-Stack
270 976 up to 400 / laser bar QCW active FAC / SAC / BT available upon request real macro-channels A-Stack
271 976 up to 400 / laser bar QCW passive FAC / SAC / BT available upon request smile < 0.1µm C-Stack
275 1,060 up to 250 / laser bar QCW active FAC / SAC / BT available upon request Real macro-channels A-Stack
276 1,060 up to 250 / laser bar QCW passive FAC / SAC / BT available upon request heat sink M-Stack
277 1,060 up to 250 / laser bar QCW passive FAC / SAC / BT available upon request smile < 0.1µm C-Stack
278 760 up to 40 / laser bar CW active FAC / SAC / BT available upon request real macro-channels A-Stack
279 760 up to 200 / laser bar QCW active FAC / SAC / BT available upon request real macro-channels A-Stack
281 760 up to 200 / laser bar QCW passive FAC available upon request smile < 0.1µm C-Stack
283 760 up to 200 / laser bar QCW passive FAC available upon request heat sink M-Stack
284 1,470 up to 25 / laser bar CW active FAC / SAC / BT available upon request real macro-channels A-Stack
285 1,470 up to 25 / laser bar QCW active FAC / SAC / BT available upon request real macro-channels A-Stack
287 1,470 up to 25 / laser bar QCW passive FAC / SAC / BT available upon request smile < 0.1µm C-Stack
288 1,550 up to 25 / laser bar CW active FAC / SAC / BT available upon request real macro-channels A-Stack
289 1,550 up to 25 / laser bar QCW active FAC / SAC / BT available upon request real macro-channels A-Stack
291 1,550 up to 25 / laser bar QCW passive FAC / SAC / BT available upon request smile < 0.1µm C-Stack
292 1,940 up to 20 / laser bar CW active FAC / SAC / BT available upon request real macro-channels A-Stack
293 1,940 up to 20 / laser bar QCW active FAC / SAC / BT available upon request real macro-channels A-Stack
295 1,940 up to 20 / laser bar QCW passive FAC / SAC / BT available upon request smile < 0.1µm C-Stack
297 880 up to 500 / laser bar QCW passive FAC / SAC / BT available upon request heat sink M-Stack
299 976 up to 400 / laser bar QCW passive FAC / SAC / BT available upon request heat sink M-Stack
301 1,470 up to 25 / laser bar QCW passive FAC / SAC / BT available upon request heat sink M-Stack
303 1,550 up to 25 / laser bar QCW passive FAC / SAC / BT available upon request heat sink M-Stack
305 1,940 up to 20 / laser bar QCW passive FAC / SAC / BT available upon request heat sink M-Stack
306 880 up to 500 / laser bar QCW passive FAC / SAC / BT available upon request heat sink M-Stack
307 808 up to 500 / laser bar QCW passive FAC available upon request heat sink M-Stack
308 808 up to 500 / laser bar QCW passive FAC available upon request smile < 0.1µm C-Stack
